    LAYFLAT

    Category:

    Agriculture

    Conveying

    Industrial

    Applications:

    Water discharge at high pressure, for general industry and agriculture.

    Properties:

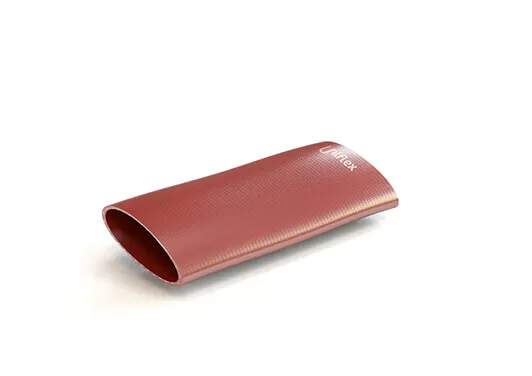

    High flexible layflat hose made with specially compounded high quality PVC and synthetic fiber reinforcement. Lightweight, easy to handle and requires minimal storage space. Excellent resistance to abrasion, water absorption and freezing temperatures. Bore smooth to minimize friction loss, exterior sinuous

    Standard Color:

    Standard:

    Temperatures Range:

    -10°C < Temp <60°C

    Download Certification

    Download PDF Sheet

    Regular:

    Item Code
    Size mm (Inch)
    ID (mm)
    Wall Thickness (mm)
    Weight (g/m)
    Working Pressure Bar / 20°C

    FLBH-100

    25 ( 1″)

    26 / +/-1.0

    1.50 / +/-0.20

    165 / +/-10.00

    7.0

    FLBH-125

    32 ( 1.25″)

    33 / +/-1.0

    1.45 / +/-0.20

    200 / +/-10.00

    7.0

    FLBH-150

    40 ( 1.5″)

    40 / +/-2.0

    1.45 / +/-0.30

    230 / +/-10.00

    7.0

    FLBH-200

    50 ( 2″)

    52 / +/-2.0

    1.60 / +/-0.30

    333 / +/-10.00

    7.0

    FLBH-250

    65 ( 2.5″)

    65.5 / +/-2.0

    1.70 / +/-0.30

    430 / +/-13.00

    7.0

    FLBH-300

    75 ( 3″)

    78 / +/-2.0

    1.90 / +/-0.30

    570 / +/-17.00

    6.0

    FLBH-400

    100 ( 4″)

    104 / +/-2.0

    2.30 / +/-0.30

    865 / +/-26.00

    6.0

    FLBH-600

    150 ( 6″)

    155 / +/-2.0

    2.60 / +/-0.30

    1,482 / +/-44.50

    6.0

    FLBH-800

    200 ( 8″)

    206 / +/-2.0

    2.65 / +/-0.30

    2,020 / +/-60.50

    4.0
